煤矿常用的带式输送机按型号分类为:DTL固定落地带式输送机、DSJ可伸缩钢架带式输送机、DTC大倾角带式输送机、DTS通用绳架带式输送机

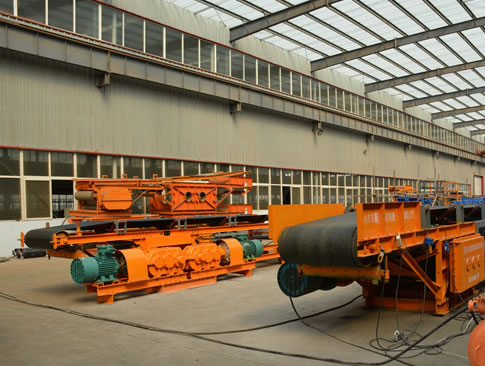

DSJ可伸缩钢架带式输送机是以皮带作为牵引承载机的连续运输设备,它与普通皮带输送机相比增加了储带装置和收放胶带装置等。
当游动小车向机尾一端移动时,皮带进入储带装置内,机尾回缩;反之则机尾延伸,因而使输送机具有可伸缩的性能。
DSJ可伸缩带式输送机技术参数
型 号 | 输送量(t/h) | 带宽 | 带速 | 输送长度 | 滚筒直径 | 托辊直径 | 贮带长度 | 机尾长度 | 搭接轨距 | 装机功率 |
DSJ65/20/2Χ30 | 200 | 650 | 1.63 | 600 | Φ450 | Φ89 | 50 | 12 | 900 | 2Χ30 |
DSJ65/20/2Χ37 | 200 | 650 | 1.63 | 800 | Φ450 | Φ89 | 50 | 12 | 900 | 2Χ37 |
DSJ65/10/40 | 100 | 650 | 2 | 600 | Φ500 | Φ89 | 100 | 12 | 900 | 40 |
DSJ65/20/2Χ40 | 200 | 650 | 2 | 800 | Φ500 | Φ89 | 100 | 12 | 900 | 2Χ40 |
DSJ65/20/2Χ55 | 200 | 650 | 2 | 1200 | Φ500 | Φ89 | 100 | 12 | 900 | 2Χ55 |
DSJ80/30/2Χ30 | 300 | 800 | 1.63 | 500 | Φ450 | Φ89 | 50 | 12 | 1100 | 2Χ30 |
DSJ80/40/40 | 400 | 800 | 2 | 250 | Φ500 | Φ89 | 100 | 12 | 1100 | 40 |
DSJ80/40/2Χ40 | 400 | 800 | 2 | 500 | Φ500 | Φ89 | 100 | 12 | 1100 | 2Χ40 |
DSJ80/40/2Χ40P | 400 | 800 | 2 | 500 | Φ500 | Φ89 | 100 | 12 | 1100 | 2Χ40 |
DSJ80/40/2Χ55 | 400 | 800 | 2 | 700 | Φ500 | Φ89 | 100 | 12 | 1100 | 2Χ55 |
DSJ80/50/2Χ75 | 500 | 800 | 2 | 800 | Φ630 | Φ89 | 50 | 12 | 1100 | 2Χ75 |
DSJ80/40/2Χ90 | 400 | 800 | 2 | 1200 | Φ630 | Φ89 | 50 | 12 | 1100 | 2Χ90 |
DSJ80/40/2Χ110 | 400 | 800 | 2 | 1400 | Φ630 | Φ89 | 100 | 15 | 1100 | 2Χ110 |
DSJ100/63/2Χ75 | 630 | 1000 | 2 | 650 | Φ630 | Φ108 | 50 | 12 | 1362 | 2Χ75 |
DSJ100/63/125 | 630 | 1000 | 2 | 500 | Φ630 | Φ108 | 100 | 15 | 1362 | 125 |
DSJ100/80/2Χ125 | 800 | 1000 | 2 | 900 | Φ630 | Φ108 | 100 | 15 | 1362 | 2Χ125 |
DSJ100/80/2Χ132 | 800 | 1000 | 3 | 900 | Φ1000 | Φ108 | 100 | 15 | 1362 | 2Χ132 |
DSJ100/80/2Χ160 | 800 | 1000 | 3.15 | 1100 | Φ1000 | Φ133 | 100 | 15 | 1362 | 2Χ160 |
DSJ100/80/2Χ200 | 800 | 1000 | 3.15 | 1300 | Φ1000 | Φ133 | 130 | 15 | 1362 | 2Χ200 |
DSJ100/80/2Χ250 | 800 | 1000 | 3.15 | 1700 | Φ1000 | Φ133 | 130 | 15 | 1362 | 2Χ250 |
DSJ100/80/2Χ315 | 800 | 1000 | 3.15 | 2100 | Φ1000 | Φ133 | 130 | 15 | 1362 | 2Χ315 |
DSJ120/100/2Χ75 | 1000 | 1200 | 2 | 600 | Φ630 | Φ108 | 50 | 15 | 1562 | 2Χ75 |
DSJ120/180/2Χ200 | 1800 | 1200 | 3.3 | 650 | Φ1080 | Φ133 | 130 | 15 | 1562 | 2Χ200 |
DSJ120/200/3Χ250 | 2000 | 1200 | 3.3 | 1100 | Φ1080 | Φ133 | 130 | 15 | 1562 | 3Χ250 |
DSJ120/150/2Χ315 | 1500 | 1200 | 3.3 | 1200 | Φ1080 | Φ133 | 130 | 15 | 1562 | 2Χ315 |
DTL固定落地带式输送机是以输送带作牵引和承载构件,通过承载物料的输送带的运动进行物料输送的连续输送设备,其结构简单,运行平稳可靠,能耗低,对环境污染小,便于集中控制和实现自动化,管理和维护方便,在连续装载的条件下可实现连续运输。
DTL固定落地带式输送机输送物料为散状不规则形状的煤和矸石,主要用于煤矿井下综采或普采工作的顺槽运输,也可以用于巷道掘进运输。所配套的电机、电气设备具有隔爆性能。
DTS绳架吊挂、DTL固定带式输送机技术参数
型 号 | 输送量 (t/h) | 带宽 | 带速 | 输送长度 | 倾角 | 滚筒直径 | 托辊直径 | 装机功率 |
DTS65/20/22 | 200 | 650 | 1.63 | 500 | ±5° | Φ450 | Φ89 | 22 |
DTS80/40/2Χ30 | 400 | 800 | 1.63 | 500 | ±5° | Φ450 | Φ89 | 2Χ30 |
DTL50/10/30 | 100 | 650 | 1.63 | 400 | ±5° | Φ450 | Φ89 | 30 |
DTL65/20/2Χ30 | 200 | 650 | 1.63 | 400 | ±5° | Φ450 | Φ89 | 2Χ30 |
DTL65/20/2Χ37 | 200 | 650 | 1.63 | 500 | ±5° | Φ450 | Φ89 | 2Χ37 |
DTL65/10/2Χ45 | 100 | 650 | 1.63 | 1000 | ±5° | Φ500 | Φ89 | 2Χ45 |
DTL65/20/2Χ40 | 200 | 650 | 2 | 600 | ±5° | Φ500 | Φ89 | 2Χ40 |
DTL80/30/2Χ30 | 300 | 800 | 1.63 | 500 | ±5° | Φ450 | Φ89 | 2Χ30 |
DTL80/40/2Χ37 | 400 | 800 | 1.63 | 600 | ±5° | Φ450 | Φ89 | 2Χ37 |
DTL80/40/2Χ45 | 400 | 800 | 1.63 | 600 | ±5° | Φ500 | Φ89 | 2Χ45 |
DTL80/40/2Χ40 | 400 | 800 | 2 | 500 | ±5° | Φ500 | Φ89 | 2Χ40 |
DTL80/40/2Χ55 | 400 | 800 | 2 | 700 | ±5° | Φ500 | Φ89 | 2Χ55 |
DTL80/40/2Χ75 | 400 | 800 | 2 | 1000 | 0-2° | Φ630 | Φ89 | 2Χ75 |
DTL80/40/2Χ90 | 400 | 800 | 2 | 1200 | 0-2° | Φ630 | Φ89 | 2Χ90 |
DTL80/40/2Χ110 | 450 | 800 | 2 | 1300 | 0-2° | Φ630 | Φ89 | 2Χ110 |
DTL100/50/2Χ40 | 500 | 1000 | 2 | 300 | ±5° | Φ500 | Φ108 | 2Χ40 |
DTL100/50/2Χ55 | 500 | 1000 | 2 | 300 | ±5° | Φ500 | Φ108 | 2Χ55 |
DTL100/63/2Χ75 | 630 | 1000 | 2 | 700 | 0-2° | Φ630 | Φ108 | 2Χ75 |
DTL100/50/2Χ90 | 500 | 1000 | 2 | 1000 | 0-5° | Φ630 | Φ108 | 2Χ90 |
DTL100/65/2Χ110 | 650 | 1000 | 2 | 1000 | 0-3° | Φ630 | Φ108 | 2Χ110 |
DTL100/60/355S | 600 | 1000 | 2.5 | 400 | 15° | Φ1000 | Φ108 | 355S |
DTL100/75/160S | 750 | 1000 | 3 | 150 | 15° | Φ830 | Φ108 | 160S |
DTL100/90/185S | 900 | 1000 | 3 | 150 | 15° | Φ830 | Φ108 | 185S |
DTL100/40/2Χ220S | 400 | 1000 | 1.9 | 1000 | 0-14° | Φ830 | Φ133 | 2Χ220 |
DTL100/75/2Χ220 | 750 | 1000 | 2.5 | 1100 | ±2° | Φ830 | Φ108 | 2Χ220 |
DTL100/75/2Χ400 | 750 | 1000 | 2.5 | 2000 | 2-3° | Φ1000 | Φ133 | 2Χ400 |
DTL120/80/2Χ90 | 800 | 1200 | 2.5 | 600 | 0-1° | Φ800 | Φ133 | 2Χ90 |
DTL120/120/2Χ132 | 1200 | 1200 | 2.5 | 600 | 1-0° | Φ830 | Φ133 | 2Χ132 |
DTL120/120/2Χ200 | 1200 | 1200 | 3.15 | 1100 | ±3° | Φ1030 | Φ133 | 2Χ200 |
DTL120/150/2Χ315 | 1500 | 1200 | 3.15 | 1000 | ±3° | Φ1030 | Φ133 | 2Χ315 |
DTL120/120/2Χ280S | 1200 | 1200 | 3.15 | 600 | 0-14° | Φ1280 | Φ133 | 2Χ280 |
DTL120/150/2Χ630S | 1500 | 1200 | 3.15 | 1000 | 14-15° | Φ1280 | Φ133 | 2Χ630 |
DTL120/120/2Χ400 | 1200 | 1200 | 3.15 | 1500 | 2-3° | Φ1280 | Φ133 | 2Χ400 |
DTL120/120/2Χ500 | 1200 | 1200 | 3.15 | 2000 | 2-3° | Φ1280 | Φ133 | 3Χ500 |
DTL120/200/3Χ630 | 2000 | 1200 | 3.15 | 1200 | 2-3° | Φ1280 | Φ133 | 3Χ630 |
DTL140/200/2Χ315 | 2000 | 1400 | 3.15 | 1100 | ±3° | Φ1030 | Φ159 | 2Χ315 |
DTL140/250/3Χ400S | 2500 | 1400 | 3.15 | 600 | 14-15° | Φ1280 | Φ159 | 3Χ400 |
DTL140/160/2Χ355 | 1600 | 1400 | 3.15 | 800 | 2-3° | Φ1280 | Φ159 | 2Χ355 |
DTL140/200/2Χ500 | 2000 | 1400 | 3.15 | 900 | 2-3° | Φ1280 | Φ159 | 2Χ500 |
大倾角带式输送机(DTC通用深槽)
DTC大倾角带式输送机是布置倾角为20°~30°的带式输送机,适用于输送容重为0.4~2.5吨/m³的散状物料或成件物品,既可用于向上运输,也可用于向下运输;向下运输时,其允许最大倾角为向上输送允许最大倾角的80%。
DTC大倾角带式输送机采用单电机单滚筒或单电机双滚筒或双电机双滚筒驱动,采用深槽托棍组,根据所运物料的粒度,湿度和角度配花纹胶带或者普通胶带,减速机配逆止器,并配备有制动装置。
DTC大倾角上、下运带式输送机技术参数
型 号 | 输送量 (t/h) | 带宽 | 带速 | 输送长度 | 倾角 | 滚筒直径 | 托辊直径 | 装机功率 |
DTC80/15/2Χ75S | 150 | 800 | 2 | 400 | 25° | Φ630 | Φ89 | 2Χ75 |
DTC80/15/2Χ90S | 150 | 800 | 2 | 600 | 25° | Φ630 | Φ89 | 2Χ90 |
DTC80/20/2Χ110S | 200 | 800 | 2.5 | 500 | 25° | Φ830 | Φ89 | 2Χ110 |
DTC80/20/160S | 200 | 800 | 2.2 | 400 | 25° | Φ1000 | Φ108 | 160 |
DTC80/30/2Χ220S | 300 | 800 | 2.5 | 500 | 20° | Φ1250 | Φ108 | 2Χ220 |
DTC80/20/280S | 200 | 800 | 2 | 600 | 25° | Φ1000 | Φ108 | 280 |
DTC80/20/315S | 200 | 800 | 2 | 700 | 25° | Φ1000 | Φ108 | 315 |
DTC80/30/2Χ400S | 300 | 800 | 2.5 | 1600 | 0-16° | Φ1280 | Φ108 | 2Χ400 |
DTC100/30/2Χ185S | 300 | 1000 | 2.2 | 600 | 25° | Φ1000 | Φ108 | 2Χ185 |
DTC100/25/250S | 250 | 1000 | 2 | 400 | 25° | Φ1000 | Φ108 | 250 |
DTC100/40/2Χ250S | 400 | 1000 | 2 | 700 | 20° | Φ1000 | Φ108 | 2Χ250 |
DTC100/80/2Χ280S | 800 | 1000 | 3 | 400 | 20° | Φ1250 | Φ133 | 2Χ280 |
DTC100/30/2Χ315S | 300 | 1000 | 2 | 400 | 20° | Φ1030 | Φ108 | 2Χ315 |
DTC100/30/2Χ450S | 300 | 1000 | 2.5 | 2000 | 0-16° | Φ1280 | Φ133 | 2Χ450 |
DTC120/75/2Χ315S | 800 | 1200 | 3 | 500 | 20° | Φ1250 | Φ133 | 2Χ315 |
DTC120/75/2Χ500S | 750 | 1200 | 2.5 | 1000 | 0-16° | Φ1280 | Φ133 | 2Χ500 |
DTC80/30/132X | 300 | 800 | 2 | 300 | 0-(-25°) | Φ1000 | Φ108 | 132 |
DTC80/25/200X | 250 | 800 | 2 | 500 | 0-(-25°) | Φ1000 | Φ108 | 200 |
DTC80/25/2Χ75X | 250 | 800 | 2 | 400 | 0-(-25°) | Φ1000 | Φ108 | 2Χ75 |
DTC80/25/2Χ110X | 550 | 1000 | 2 | 400 | 0-(-25°) | Φ1000 | Φ108 | 2Χ110 |
